Simple Solutions of Complicated Clinical Situations

Dental laboratory Kalibra. Ukraine

Initial situation: Full Maxillary Adentia.

Treatment: Placement of five Alpha Dent Implants. Selection of fixed prosthetics with the help of screwed bridge prosthesis.

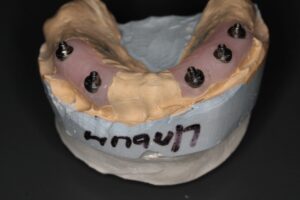

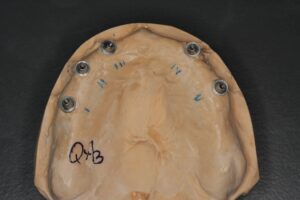

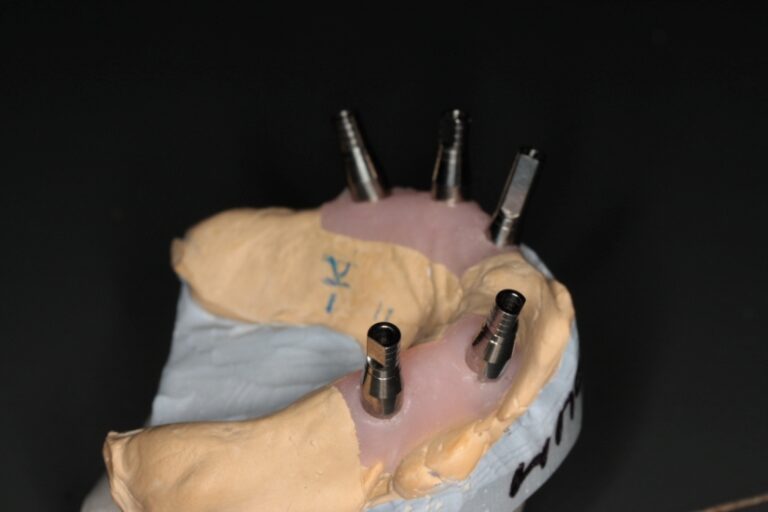

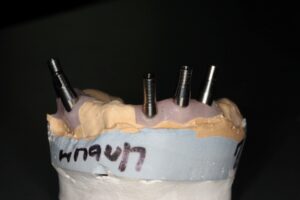

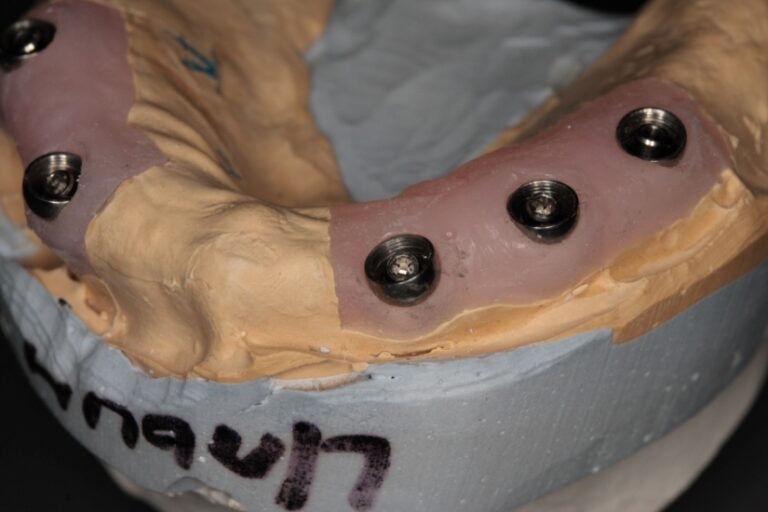

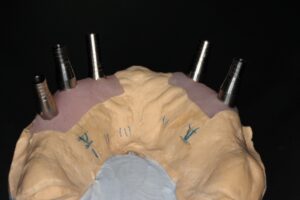

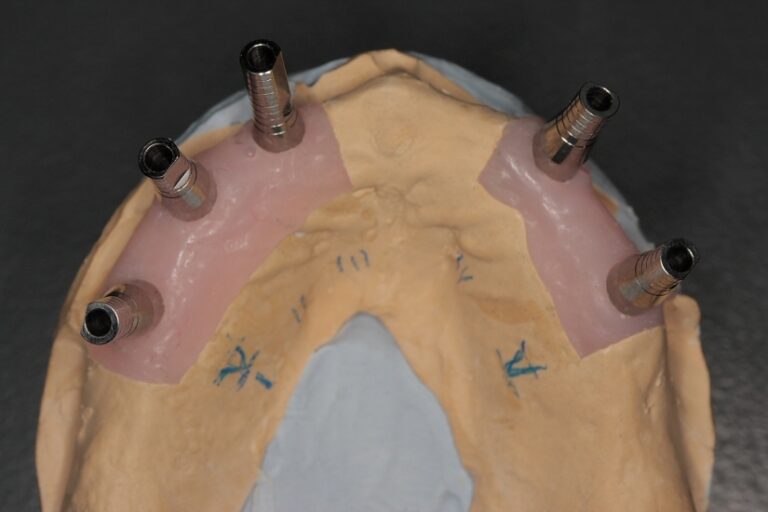

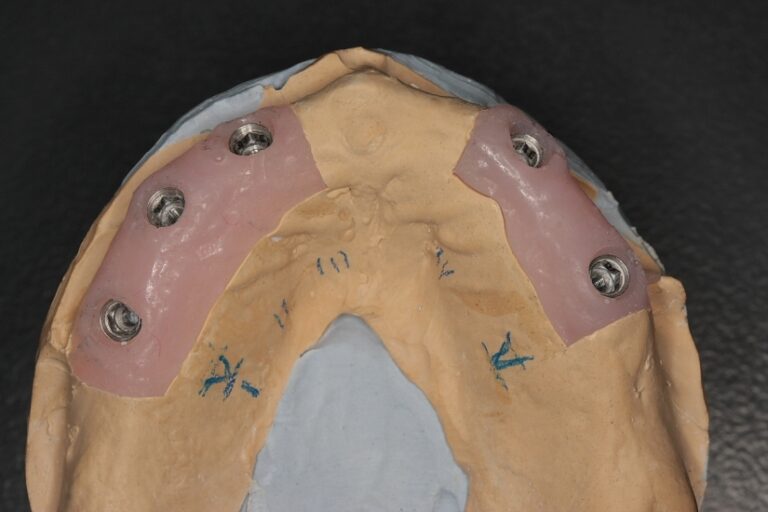

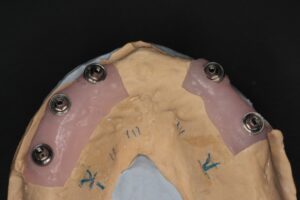

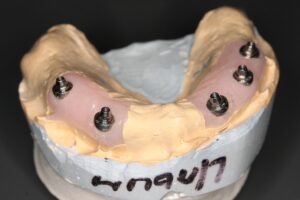

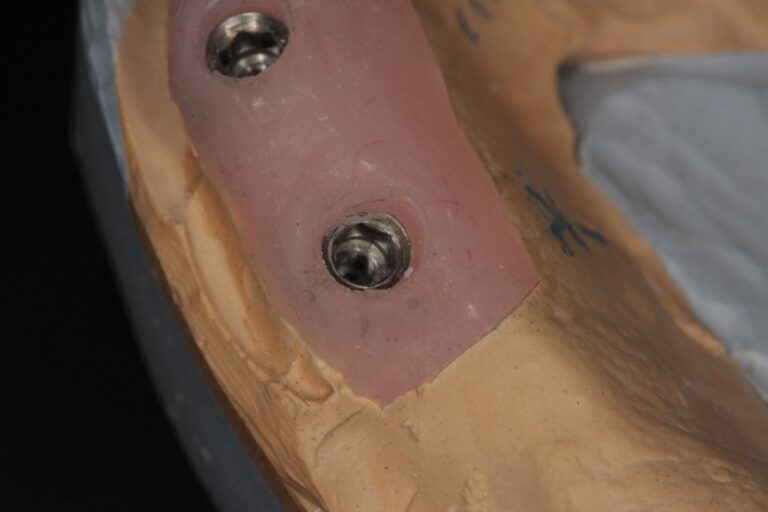

The implants were inserted with large axial deviations from each other. This is seen on the Photos 1c, d, e , and f witha straight abutment screwed on. Alpha Dent Implants Adapters capable to align an angle from 17 to 30 degrees were chosen to solve this clinical situation. The adapter consists of three components. The first component of the adapter is screwed on the analogs of implants at the first stage (Photo 2); the second tapered component is got on it (Photo 3а, b, c, and d). The third component ofthe adapter is fixed in the bridge prosthesis, being a response taper component (Photo 4а, ,b, and c). The bridge prosthesis is made with technical screw holes (Photo 5а, b).

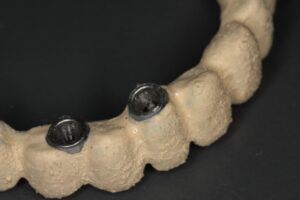

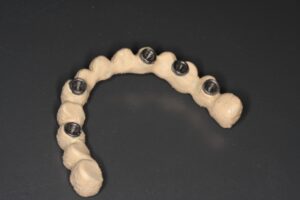

Photo 4a, b. Response component of Alpha Dent Implants Adapter in the bridge.

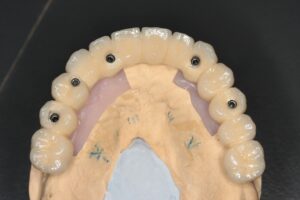

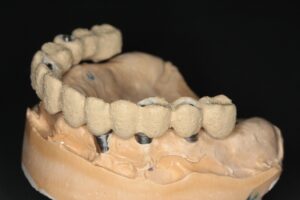

Photo 5a, b. Finished structure is fixed with the screws.

Result:

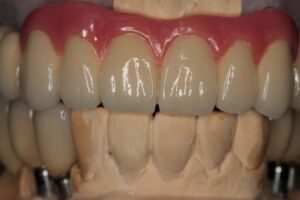

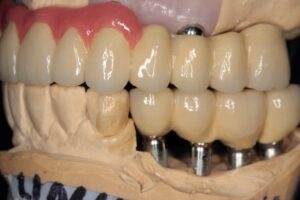

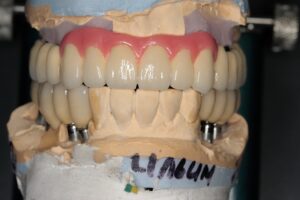

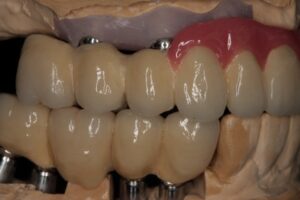

The work satisfying patient’s every esthetical and functional requirements was performed with the help of Alpha Dent Adapters notwithstanding complicated clinical conditions (Photo 6а, b, c and d).

The work was performed by: Kalibra Dental Laboratory, Smela. Our website is: www.kalibra.org.ua
